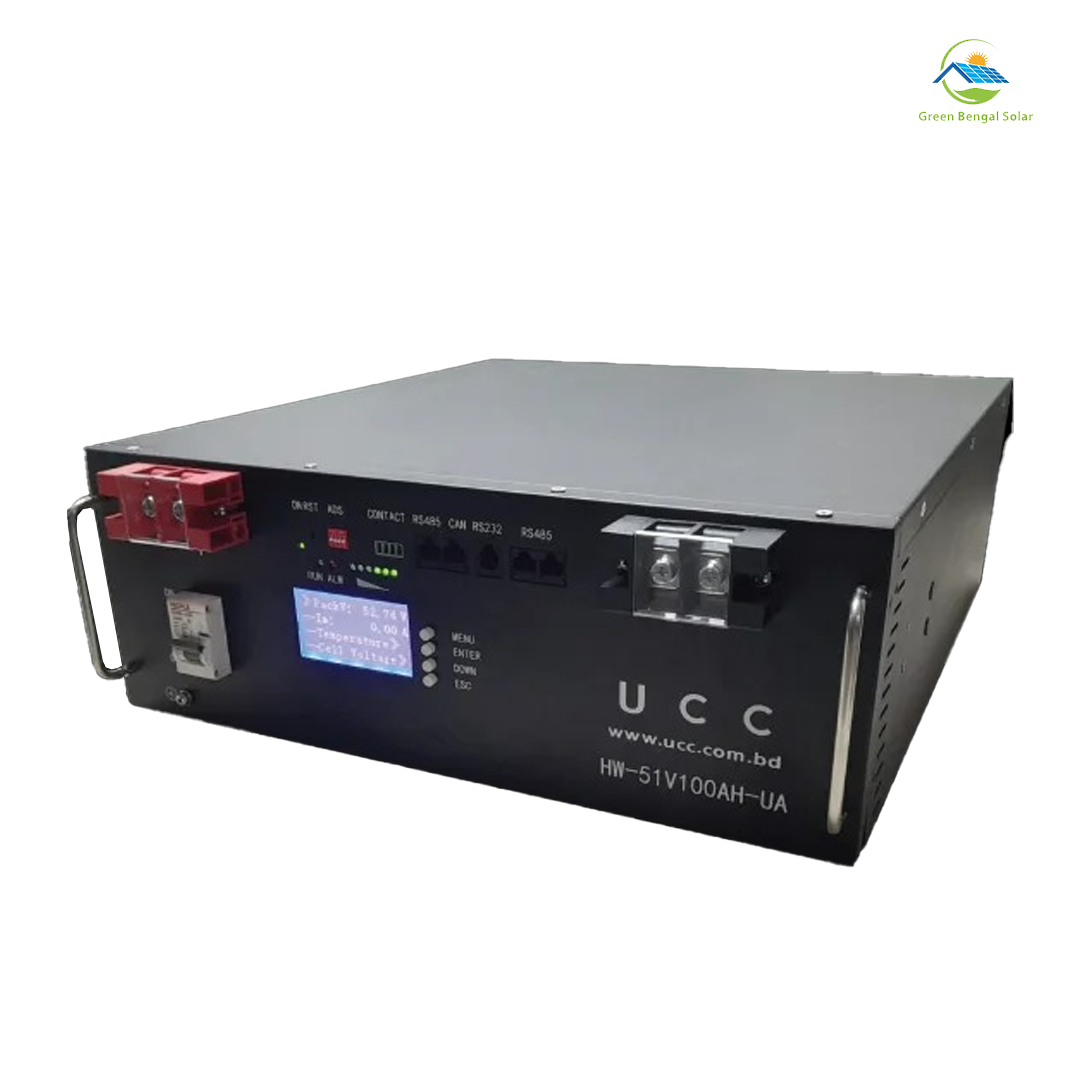

LiFePO4 HW-51V100AH-UA Lithium Ion Phosphate Battery

Description

LiFePO4 HW-51V100AH-UA Lithium Ion  Phosphate battery

Introduction

HW-51V100AH-UA is a communication lithium battery based on innovative Li-ion technology. It is especially a communication lithium battery based on innovative Li-ion technology. It is specially designed for telecom sites with advanced features: long lifespan, wide range of charging voltage, fast charging, and intelligent management.

Feature of LiFePO4 Battery

● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead

acid battery, helping to minimize replacement costs and reduce the total cost of ownership

● Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining a high

energy capacity

● High depth of DOD: Charge & discharge at 100% DOD with high performance

● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization

● Built-in safety mechanism to protect assets against any abnormal conditions (Grounding damaged, surge,

deep drain etc.)

Functions of Battery

● OVP, UVP, OTP, OCP, SCP

● Self-management on charging and discharging, single cell balancing function

● Supports communication with equipment over RS485

● Intelligent design, supports battery upgrade over RS232

● LCD displays battery information

Specification

Core Component

Battery Capacity: 51.2V 100Ah

FC Voltage: 57V

EC Voltage: 57V

Charging Current: 1~100A

Energy : 5100Wh

Internal Resistance(ACR) : ≤100mΩ（without BMS）

Cycle Life : ≥5000 cycles @70%DOD

Design Life : ≥10 years @25

Self-Discharge (30 days) : ≤5% @25c

Efficiency of Charge : ≥98%

Efficiency of Discharge : ≥100% @ 0.2C

≥96% @1C

Charge Voltage : 56-57V

Storage Specification

Others Energy : 4800Wh

Internal Resistance(ACR) : ≤20mΩ（without BMS）

Cycle Life : ≥4000 cycles @85%DOD

Design Life : ≥15 years @25

Self-Discharge (30 days) : ≤3% @35

Efficiency of Charge : ≥98%

Efficiency of Discharge : ≥100% @ 0.2C

≥96% @1C

Charge Voltage : 56-57V

Standard Charge Mode : 0.2C to 57V, then 57V charge current to 0.02C (CC/CV)

Max. Continuous Charge Current: 100A

Charge Temperature Range: 0C ~60C

Discharge Temperature Range: -10C ~60C

Optimum Operation Temperature: 10C ~35C

Storage Temperature : -20C ~55C ，≤85% Relative Humidity

Water Dust Resistance: IP20

Physical Specification

Colors Black

Dimensions (W x D x H) 442*450*157mm

Weight 43kg

Warranty Information

Warranty 5 Years
